General Electric uses the phrase "trapped vortex"
to generally denote a combustor having a non-linear cavity into which
air and fuel are injected and ignited to form a stable, stationary
vortex. This vortex acts as a boundary to help stabilize the
combustor flame, allowing combustors to have higher flow, avoid
combustion "staging", minimize autoignition within the mixer(s), and
potentially have a shorter overall axial length.
Other phrases used to express this technology include
"non-linear cavity" (by GE) and "single
cavity combustor" (by the USAF).
GE did not "invent" trapped vortex combustion
per se: The combustion concept was already known in the art
1 . Rather, GE cites United
States Air Force
Contract No. F33615-93-C-2305 as the motivation for developing their
trapped vortex combustion hardware.
As of 2008, the trapped vortex combustor concept was
approaching its' fifth generation(See:
Graphic at left).
GE has already started investigating the use of trapped
vortex combustion in their Industrial Gas Turbines (ie: "Frame", or
IGT engines)
1
Program Partners for Trapped Vortex Combustion
include the US Military (AFRL/PRSC, AFOSR, NAVAIR, NAVSEA),
US Government (DOE/NETL, NASA), and industry (GE
Aircraft Engines and Innovative Scientific Solutions, Inc. aka: ISSI)
(Explanatory language
redacted, greeking for padding only)
Nulla rhoncus auctor lorem. In ac nibh ut est ornare
ornare. Aenean consequat.
Pellentesque habitant morbi tristique senectus et
netus et malesuada fames ac turpis egestas. Curabitur dictum adipiscing
leo.
Sed odio felis, volutpat eget, tristique eu, pellentesque nec, elit.
Sed elit ipsum, vehicula et, commodo in, sagittis consectetuer, urna.
Vestibulum sem. Integer dapibus. Lorem ipsum dolor sit amet,
consectetuer adipiscing elit. Nullam tristique cursus lorem. Vestibulum
scelerisque cursus ligula. Phasellus quis odio quis pede sagittis
sodales. Aliquam erat volutpat. Phasellus dictum enim lacinia velit.
Curabitur eu nulla ut magna aliquet ornare. Sed augue.
Summary of
the technology, as published in 2006 by the US Department of
Energy's Office of Fossil Energy. The Handbook is a comprehensive
collection of gas turbine engine technologies & components.

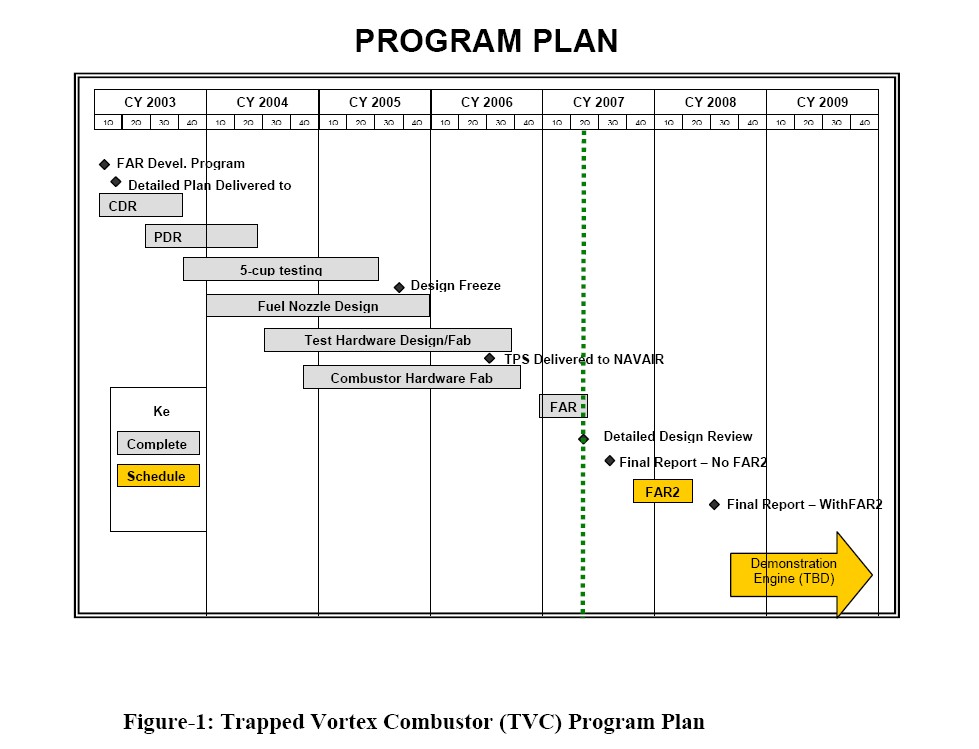

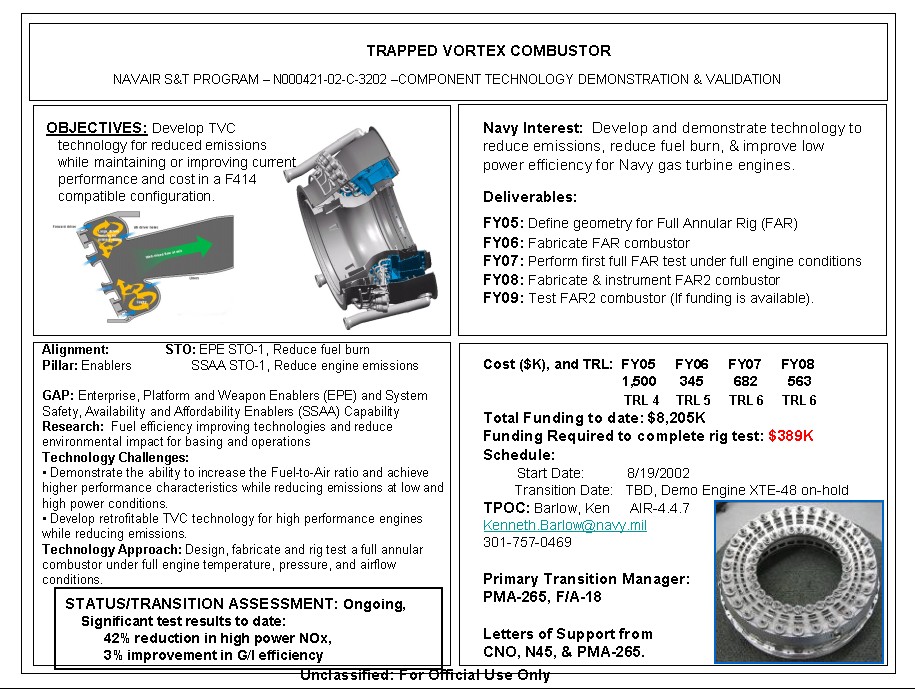

A January 2008 publication by the US
Naval Air Warfare Center (US NAWC) suggests a technology
readiness of at least TRL-4, and possibly TRL-5; the Program Plan
from that report is shown at right as Fig. 1
1
Fig. 1: TV
Combustor Plan for Military Aircraft, per US NAWC (Barlow)
Patents & Trademarks
Patents research
1 located twenty-six (26)
inventions
identified with either General Electric and/or an inventor
presumed associated with GE and explicitly mentioning a "trapped
vortex" within a combustion product or process: A spreadsheet
summarizing the documents is Attached as "120108_GETVChlo.xls", below.
GE Intellectual Property

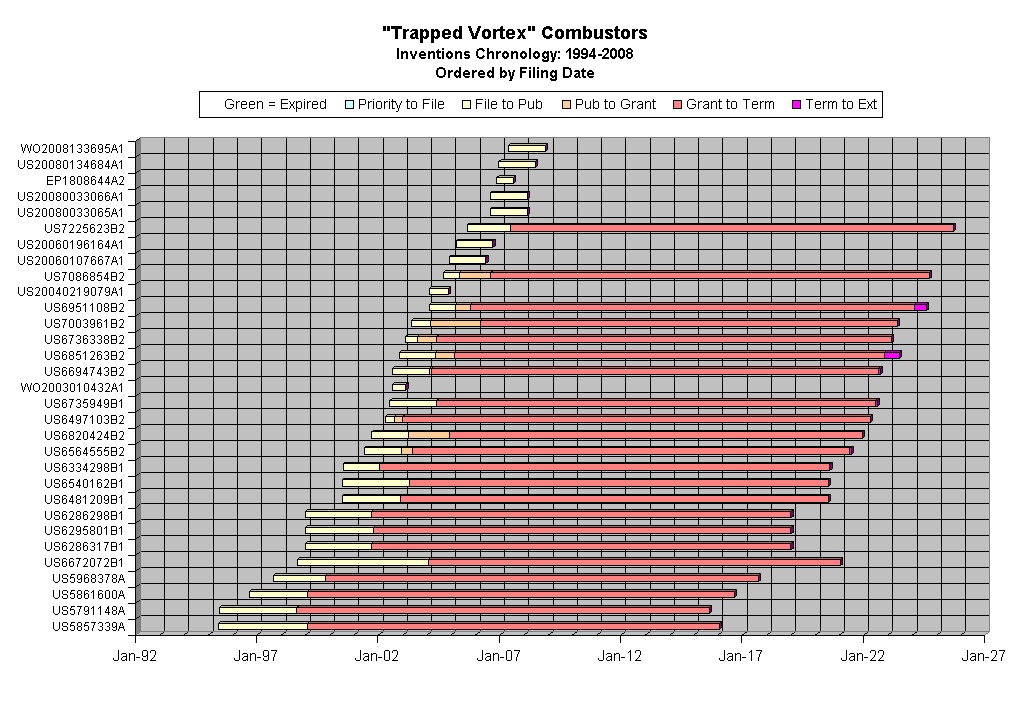

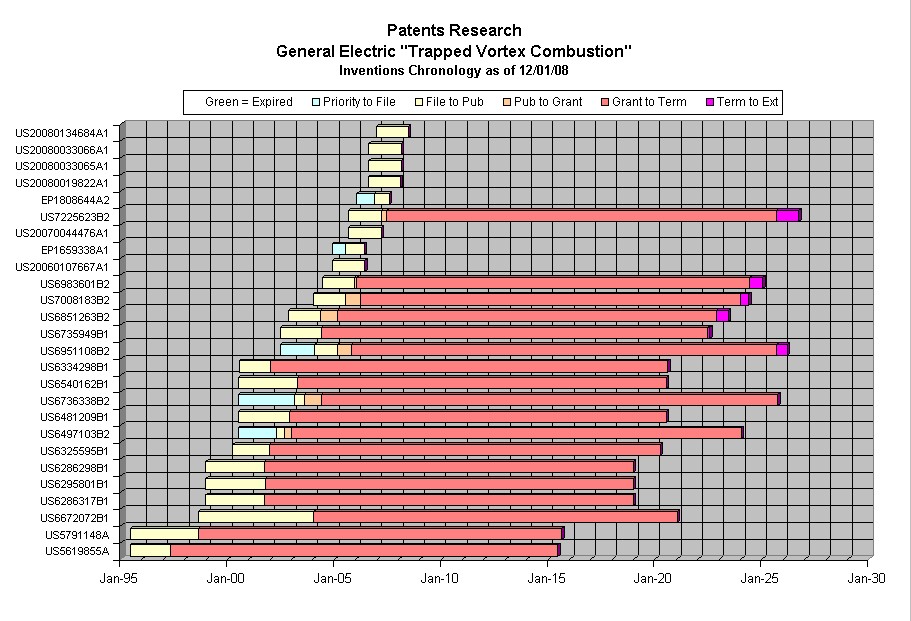

A chronology chart of patent filings by GE involving "trapped vortex"
combustion is shown at right. As of 12/01/08, all of GE's
US patent applications have been granted.
Patents research
1 on the technology, regardless
of
Company affiliation, located thirty-one (31) inventions
explicitly mentioning a "trapped vortex" within a combustion product or
process: The expanded chart is shown at right; the same chart broken
down by Company is shown below.
----
Technical Publications
Database Research
1 found forty-eight (48)
non-patent
documents involving the subject of "trapped vortex" combustion.
Research was not limited to any Company, Date, Publisher, etc.
The technical documents results is
Attached as Excel workbook "120208_TVCthlo.xls",
below.

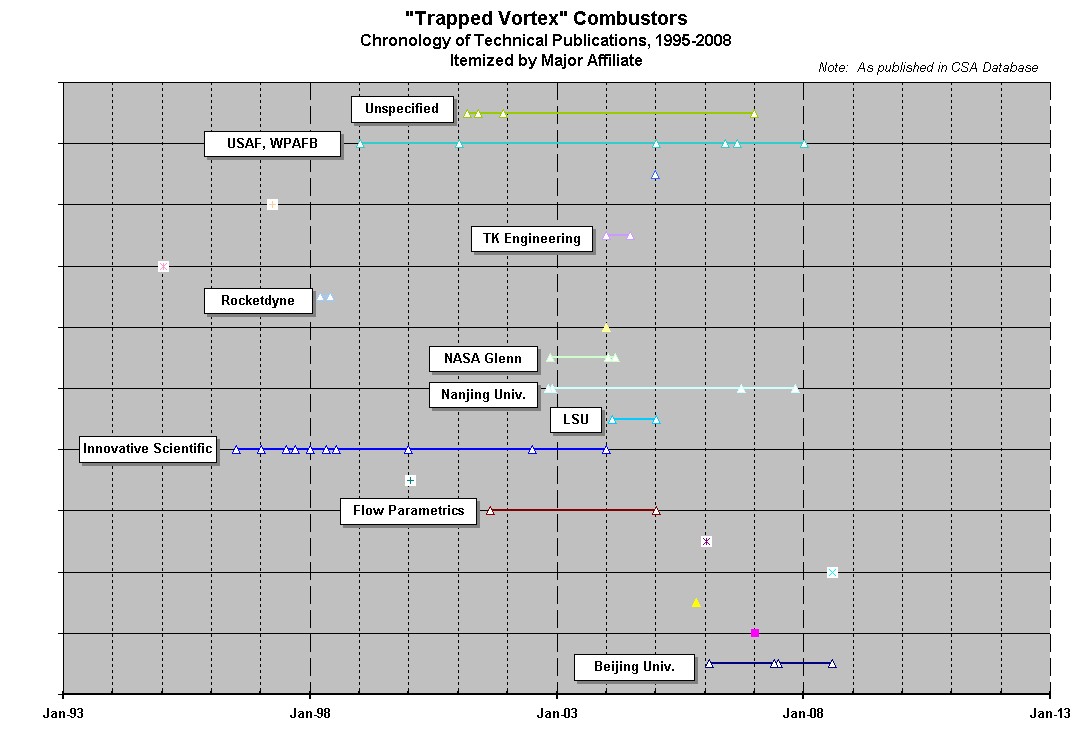

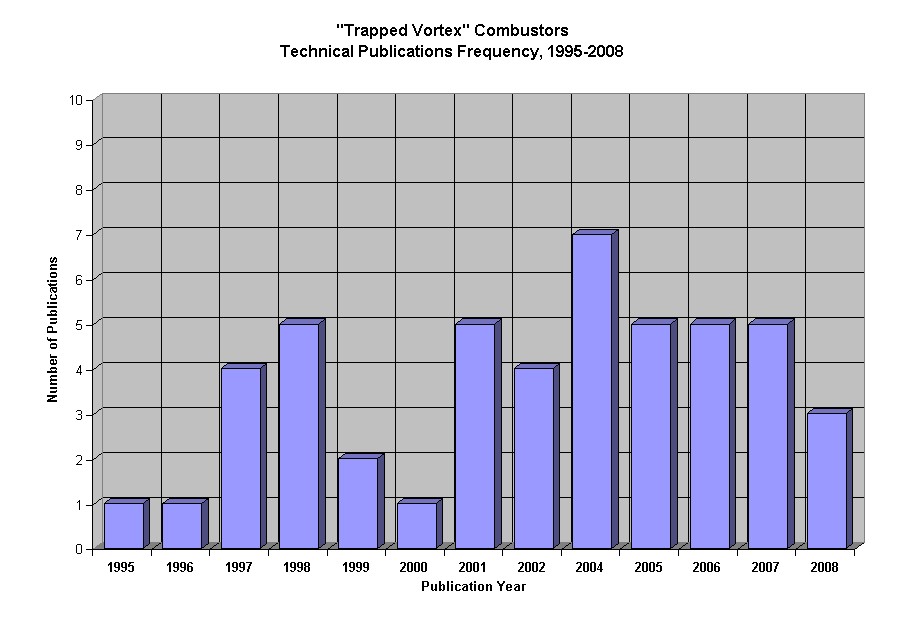

A plot illustrating the rate of
technical publications by year is shown at right. In addition, a chronology
of technical publications itemized by corporate, government, or
academic affiliation is shown below.

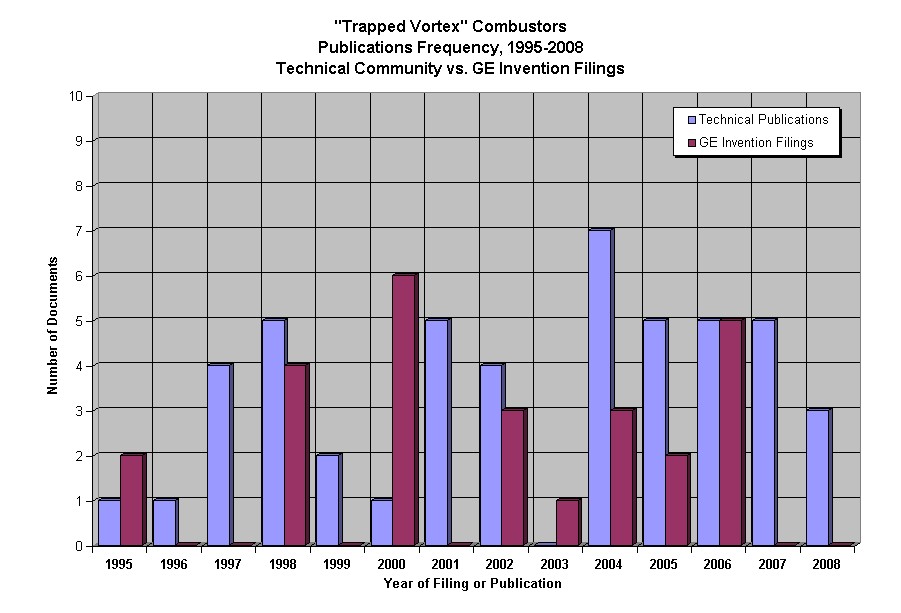

Notice that while General Electric has a number
of patents covering trapped vortex combustion, they are not explicitly
associated with any of the publicly-available technical publications.
General Information
Data
Visualizations
Chronology Chart:
Publications by Affiliation
Chronology Chart: Technical
Papers vs. GE Inventions
Chronology Chart:
Inventions, by Assignee
08/14/08
Research
Date of Research
Researcher
Research Topic
Data Resources
08/14/08
[name redacted]
Patents involving trapped vortex combustion,
per AP&T request
Micropatent - Patent Databases
Research
Results
(Add anygeneralresearch
notes here, including search limitations, caveats, etc.)
Type of Information
Results
Visual
Patents & Trademarks
Add description and/or results here
Data
Visualizations
Plot 1: Caption
Plot 2: Caption
Plot 3: Caption
